Factory
over-clocked

Factory over-clocked

Gainward Phantom series works not only much higher clock speed than reference clock - offers unbelievable performance but provides reliability and extra over-clocking capability.

Extreme Silent

Extreme silent acoustics in 3D heavy loading under factory over-clocked speed

With the new design, Gainward Phantom series with factory over-clocked speed gets quieter than reference board under full load operation.

Extreme Cool

Extreme cool in 3D heavy loading under factory over-clocked speed

Thanks to the new Phantom cooler Gainward Phantom series with factory over-clocked speed performs much lower GPU temperature than reference board.

* A back plate is fabricated on the backside of the board.

* Protect the components from damage on the backside.

* Prevent the board from bending.

Gainward superior hardware design

With the experience of the Gainward’s award winning high-performance/wide-bandwidth hardware design, GAINWARD Phantom series, again, with re-designing the entire hardware, that brings –

(1) lower energy loss
(2) lower EMI level
(3) higher stability under high current operation (heavy loading operation).

DrMOS PWM Power

Gainward designs power supply for GPU cores and GDDR6 memory chips with DrMOS that helps to supply enough fuel to the 3D graphics engine and memory chips. The DrMOS for those CUDA cores provides unlimited power and minimized current loading for each phase to stabilize the voltage level , the overall efficiency can be improved, the choke noise and EMI noise also be reduced.

Dual BIOS ( 1: BIOS#1, 2: BIOS#2)

GAINWARD RTX 2080 Phantom (GS/GLH version)
Factory over-clocking VBIOS is set on position #1 of the “dual BIOSswitch”.
Users can switch to second VBIOS on position #2, standard-clock setting” with “Zero RPM” fan control to enjoy the quietest gaming experience as well as low GPU temperature.

GAINWARD RTX 2070 Phantom (GS/GLH version)
Factory over-clocking VBIOS is set on position #1 of the “dual BIOS switch”.
Users can switch to second VBIOS on position #2, OC speed with “Zero RPM” fan control to enjoy the quietest gaming experience as well as low GPU temperature.







LED-Lighting Loading Indicator

Gainward designs a gorgeous LED-lighting indicator on the cooler. This indicator changes different color to reflect the GPU’s loading condition.

Default color-code: Stand-by mode (Green) , Light loading (Blue), Medium loading (Orange), Heavy loading (Red)

Users can define up to 16M different color by Expertool II utility as their wish.

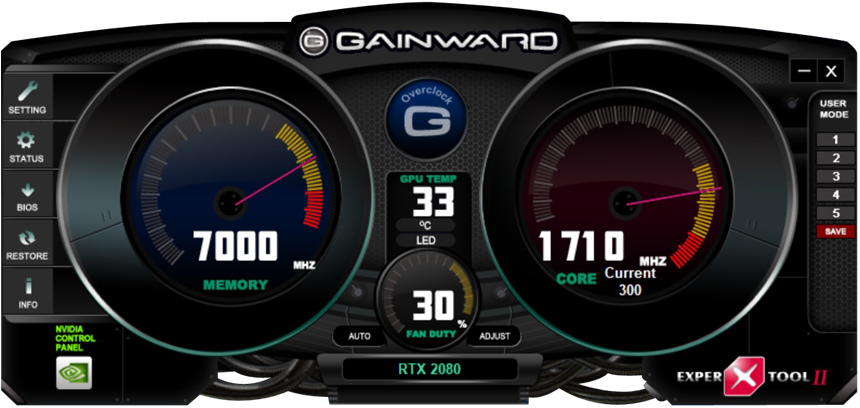

Gainward Expertool II utility

Gainward enhances the Expertool II – the brand-new utility to tap into this powerful GeForce RTX 20 series card.

New features:
* Flexible fan curve control
* GPU Boost 4.0
* LED indicating
* Multiple GPU support
* Improve BIOS saving function
* More language support

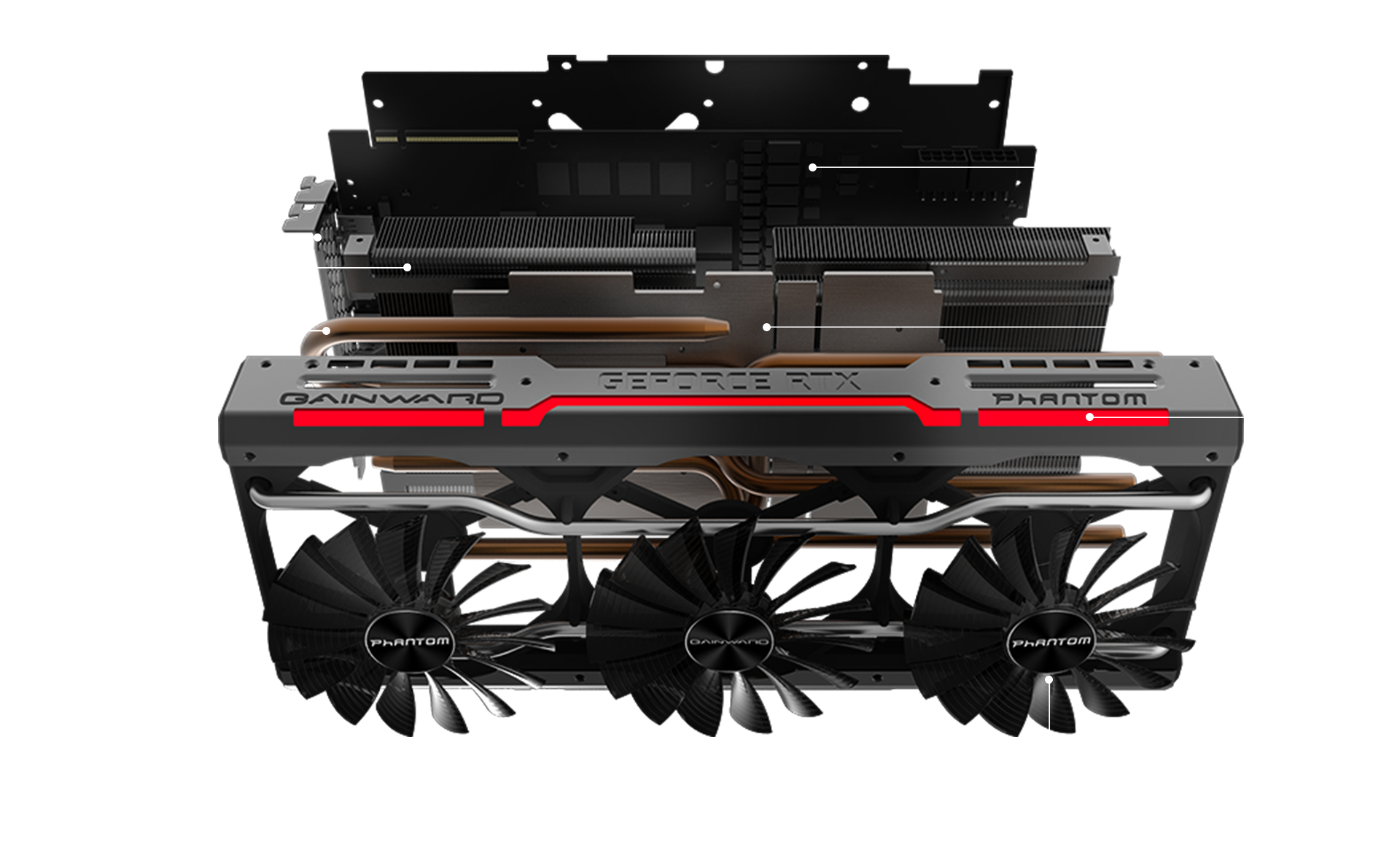

PHANTOM cooler

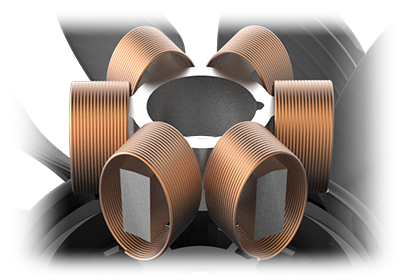

6-poles fan motor vs 4 poles (normal fan)

Smaller hub size
* 10% increase on efficiency area of the fan

Lower power consumption
* up to 30% current reduce

Smoother running than normal fan
* Lower electric noise
* Lower vibration (longer lifespan)

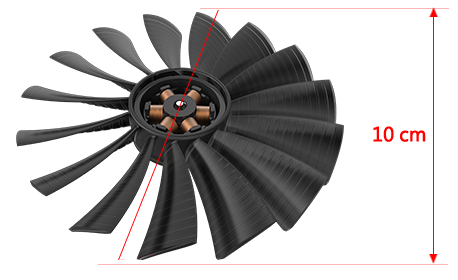

Three 10cm fans with new blade design

Patented diversion groove blade, lower acoustic level, better air flow



Zero RPM fan on #2 VBIOS

Fans will start to work for cooling the board when the GPU’s temperature raises to 60 degree C or higher.

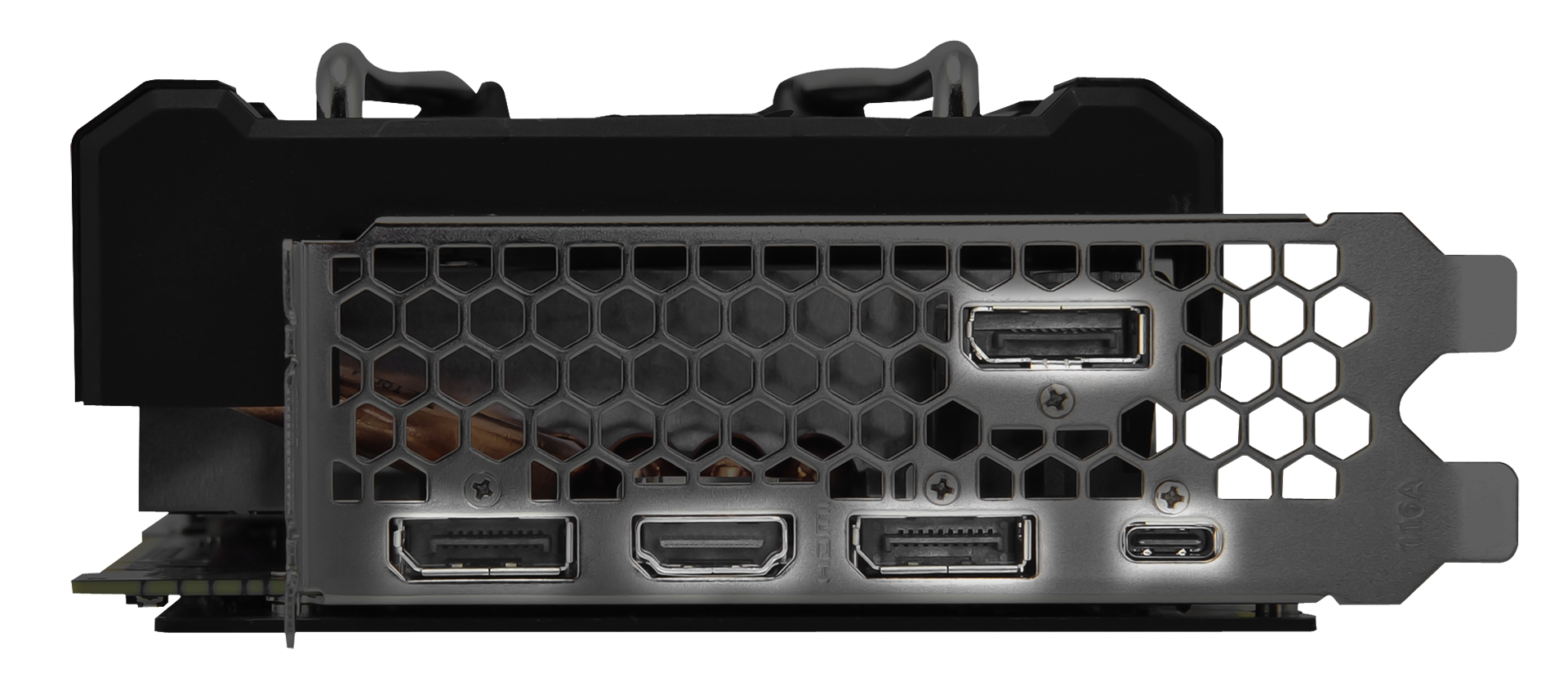

Five Display Ports

DP(v1.4) *3, HDMI(v2.0), USB Type C

* All the connectors are metal-shielding, for EMI shielding and dustproof.
* Five display ports provides users flexible configuration for multi-monitor system.
(3) higher stability under high current operation (heavy loading operation).

Four Concurrent Displays (from HDMI, three DisplayPort or USB-C)

Four simultaneous displays on one single board, up to three UHD (4K) monitors surround and an accessory display.

USB Type C port

* VirtualLink (VR+)/USB-C (new design for VR devices)
* USB host mode support
* Supply up to 35W power
* Connect to display device (monitor with DP/USB-C port)

* All the fans will start to work for cooling the board when the GPU’s temperature raises to 60 degree C or higher.

* Keep silent while under light loading operation



GeForce RTX 2080
Phantom "GLH"

8GB GDDR6 (256 bits)

Detail

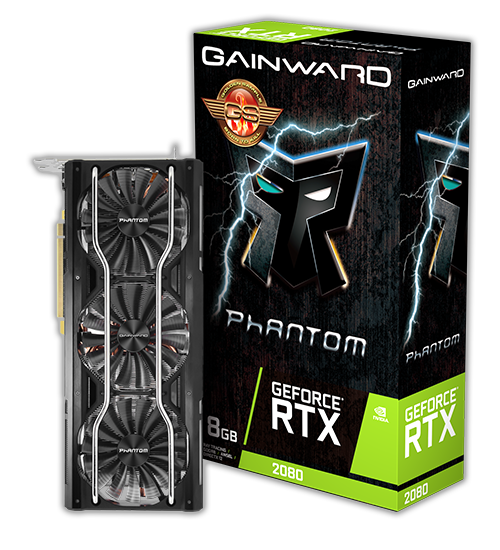

GeForce RTX 2080
Phantom "GS"

8GB GDDR6 (256 bits)

Detail



GeForce RTX 2080
Phantom "GLH"

8GB GDDR6 (256 bits)

Detail

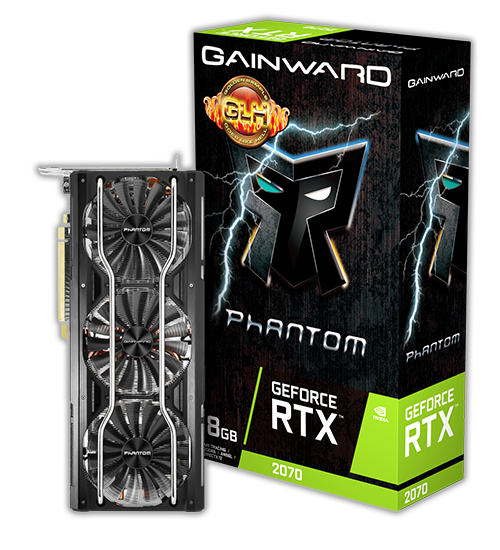

GeForce RTX 2070
Phantom "GLH"

8GB GDDR6 (256 bits)

Detail

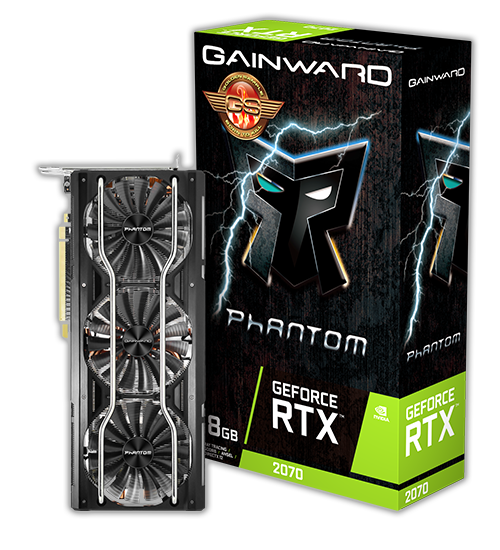

GeForce RTX 2070
Phantom "GS"

8GB GDDR6 (256 bits)

Detail



GeForce RTX 2070
Phantom

8GB GDDR6 (256 bits)

Detail
