This ARGB strip supports 5V only. Please follow below steps for installation.If any help needed, please contact our technical support team:
support@gainward.com
STEP-01

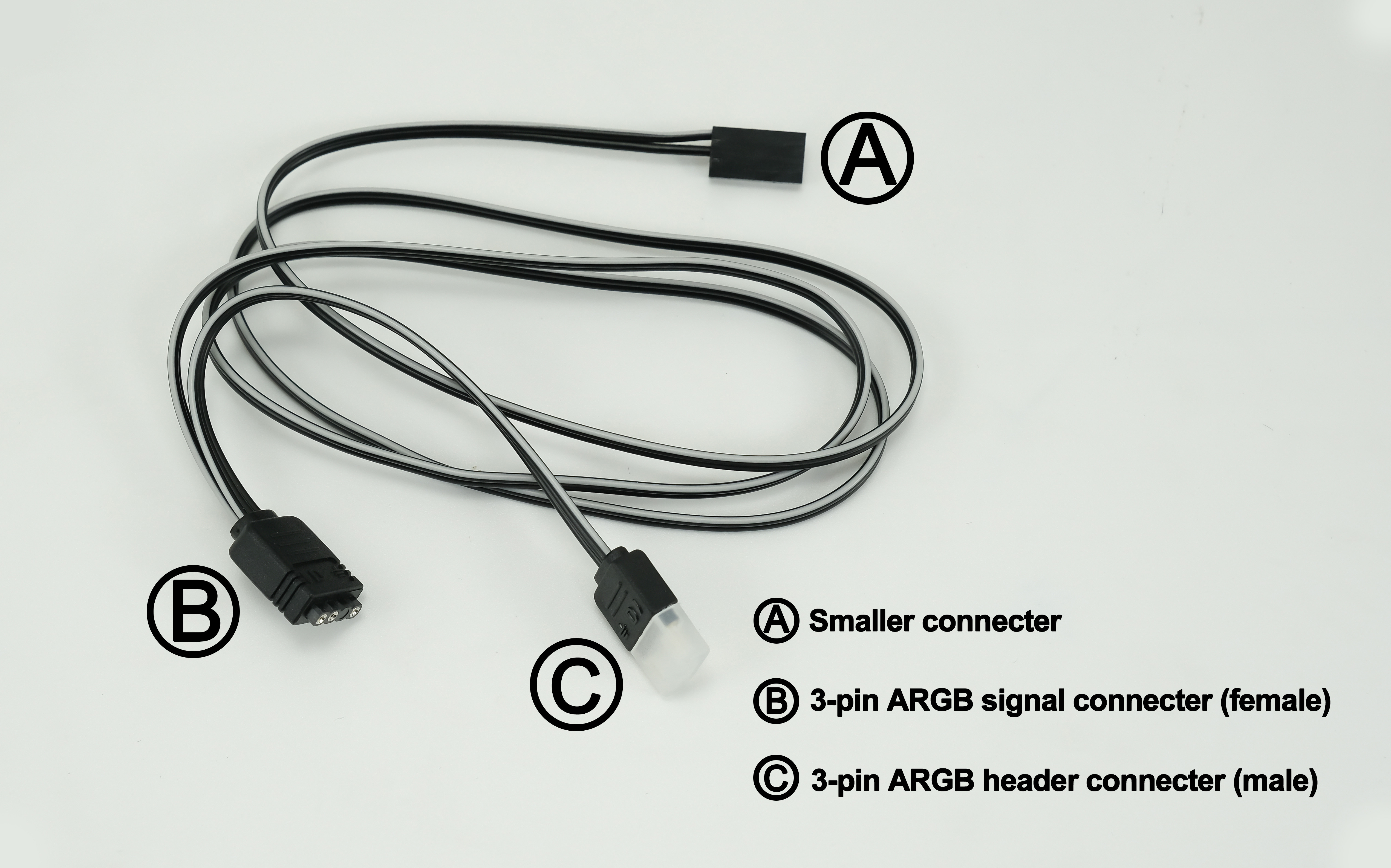

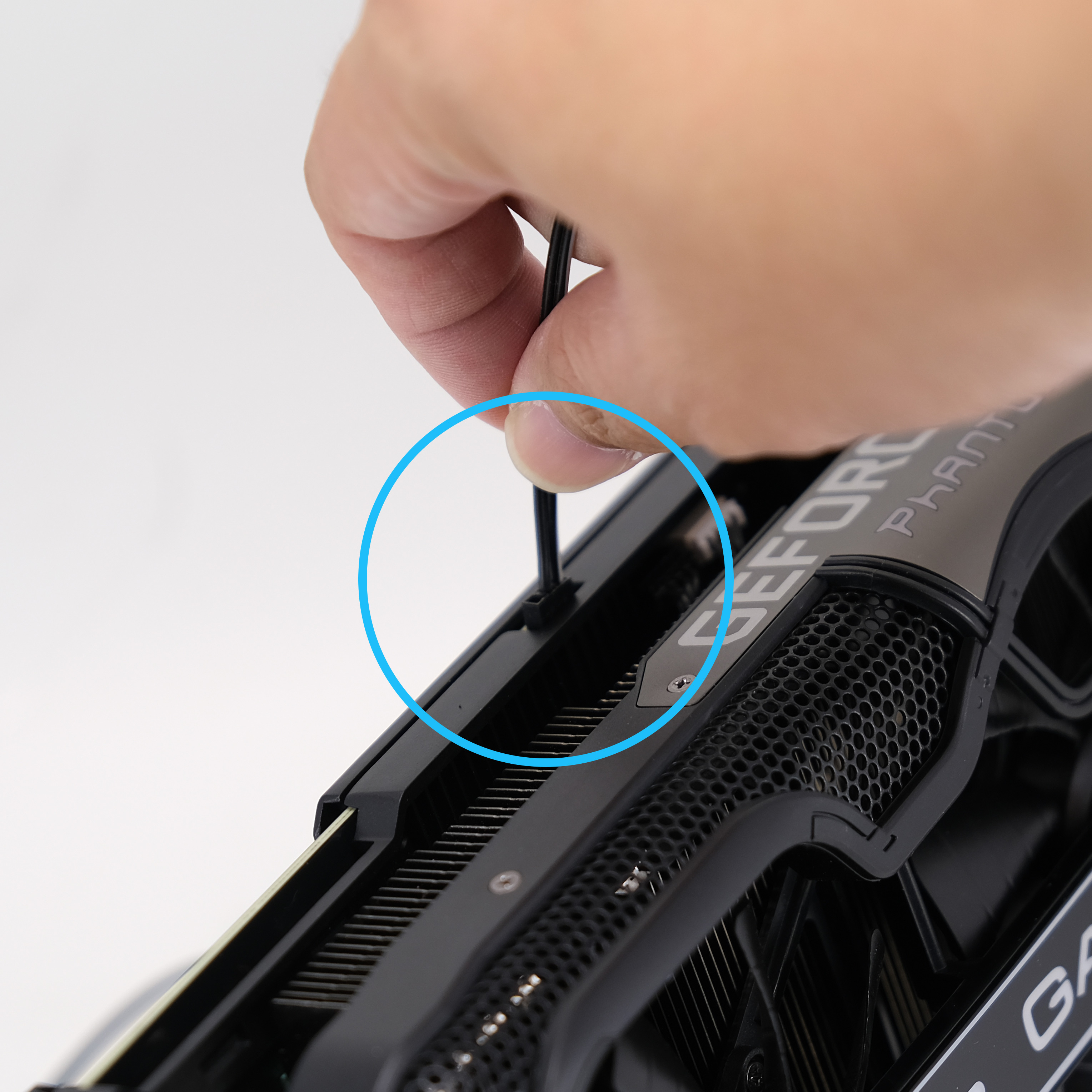

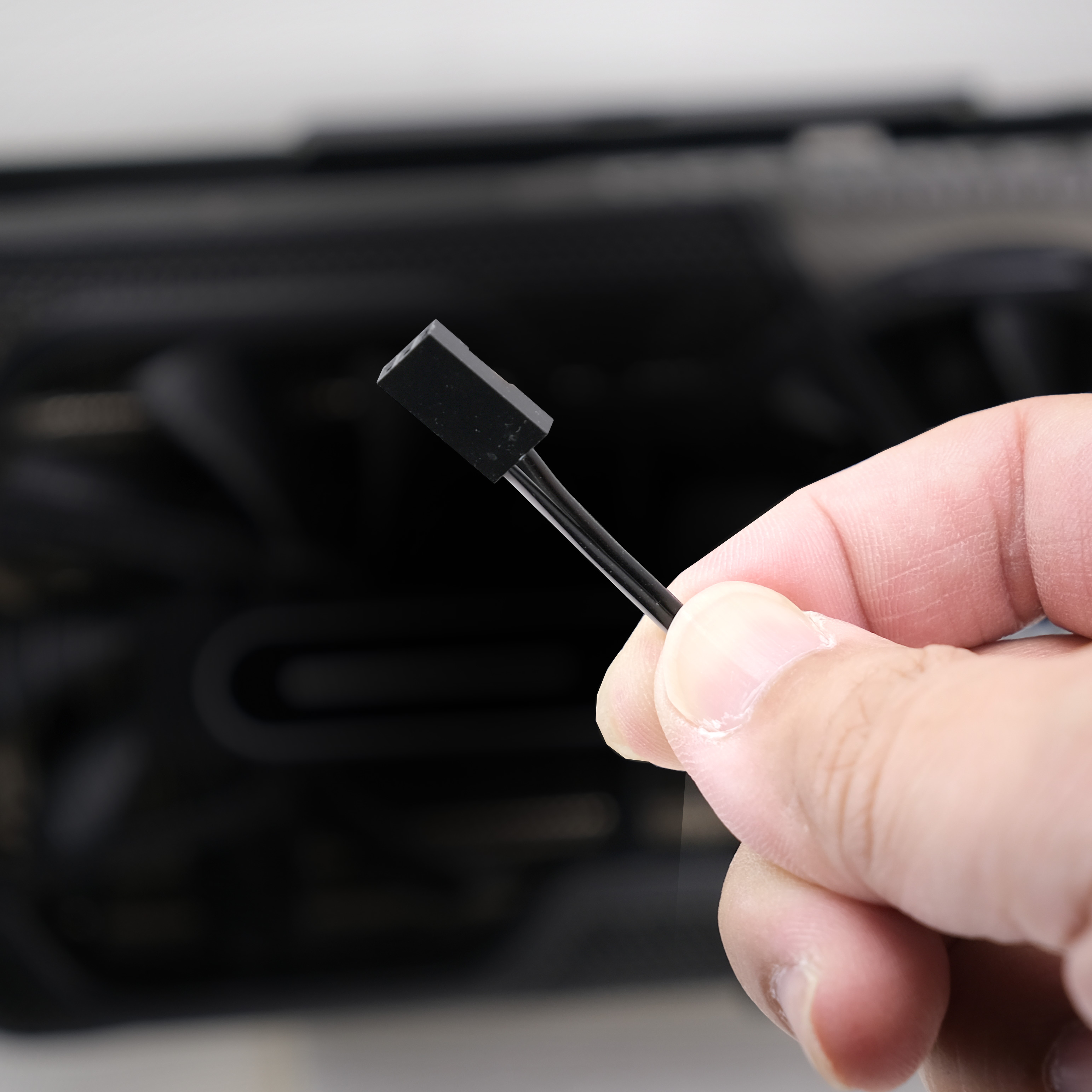

Connect the smaller end Ⓐ to GPU’s connector. The connector is non-directional, so you don’t need to worry about damaging the card with wrong connection.









STEP-02

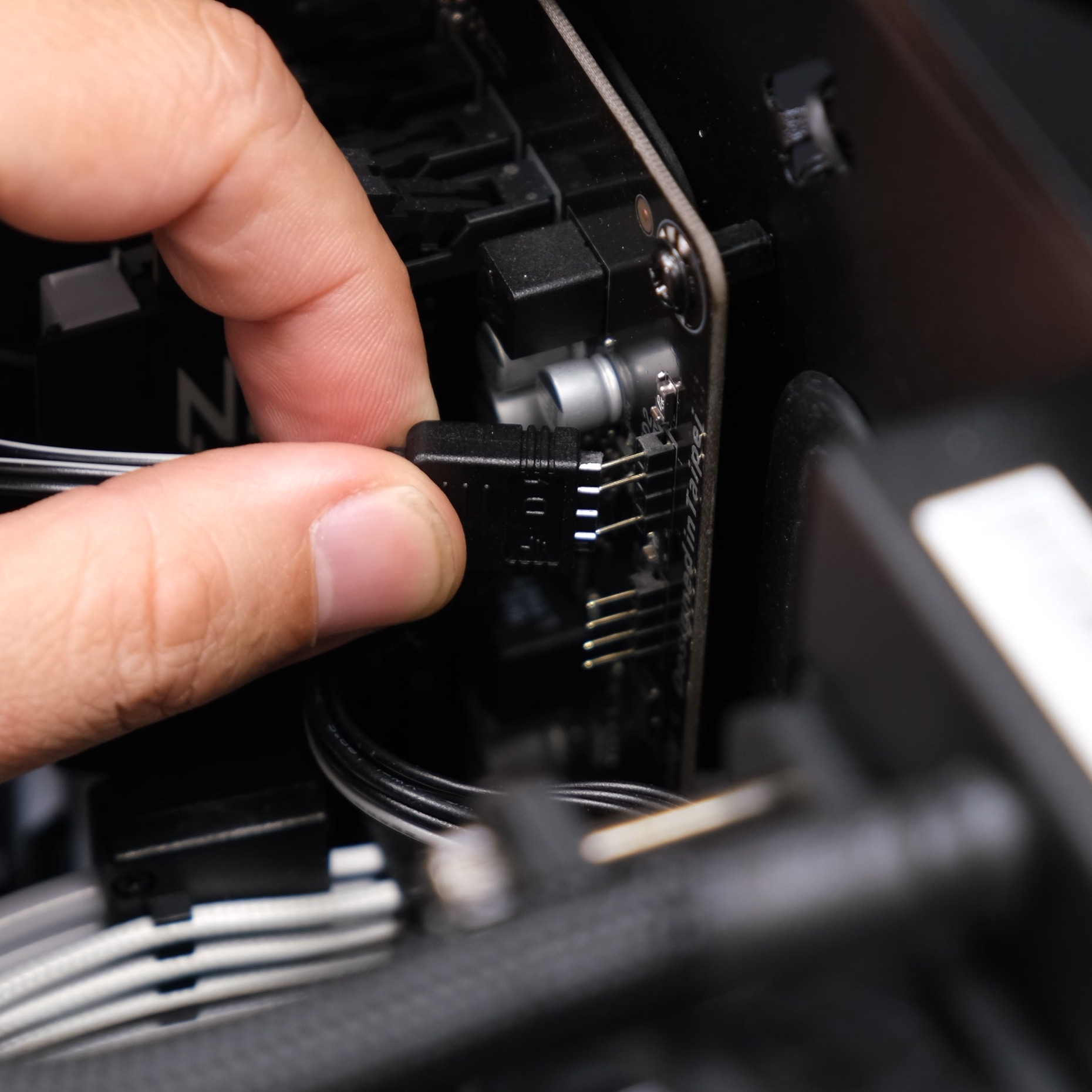

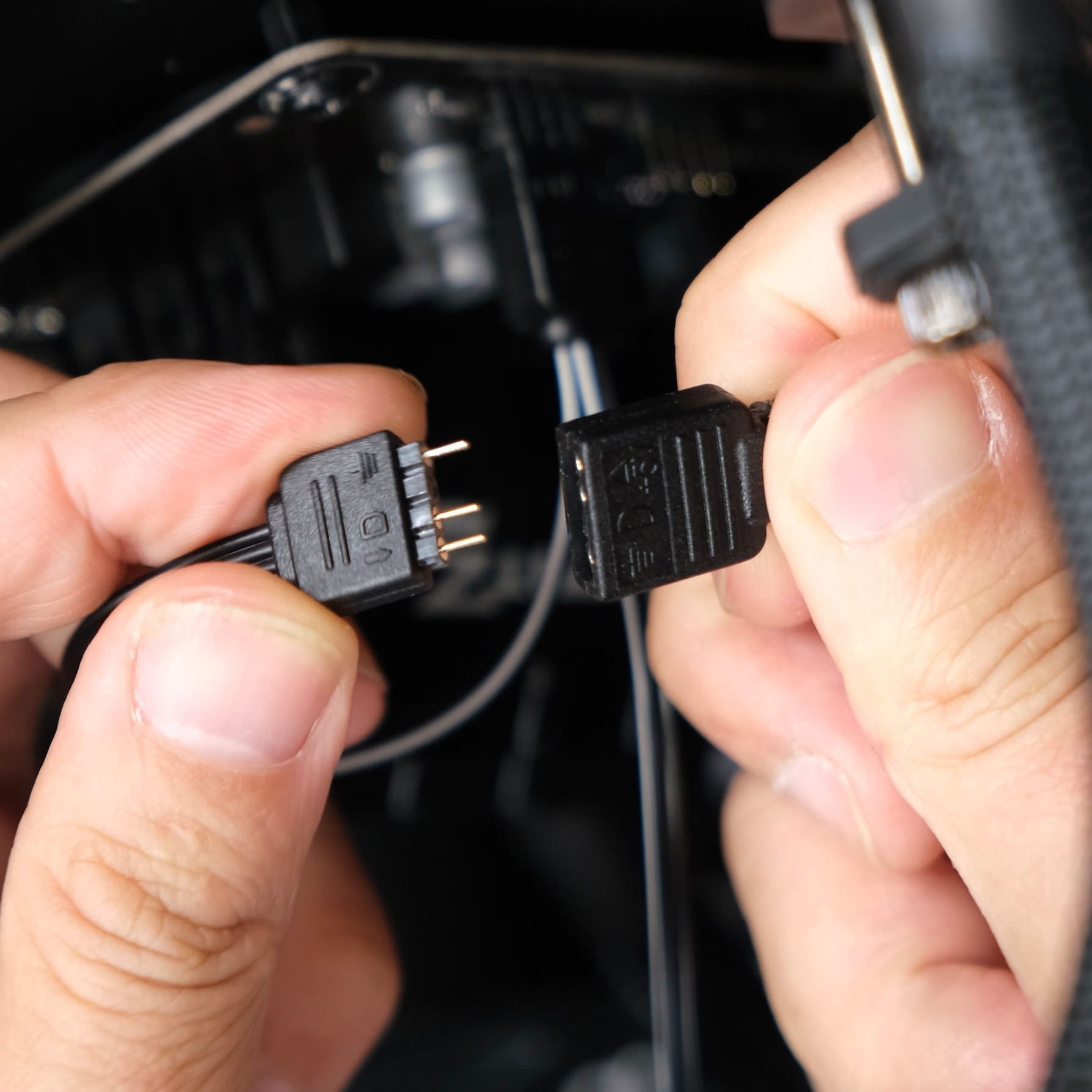

Connect Ⓑ (female) connector to the motherboard or other ARGB controller.
NOTE: The ARGB strip supports 5V only (from the motherboard header or ARGB controller.) Incorrect connection may lead to damage of the strip.





STEP-03
If you have other ARGB-supported devices, you can connect Ⓒ (male) connector to the ARGB strip.

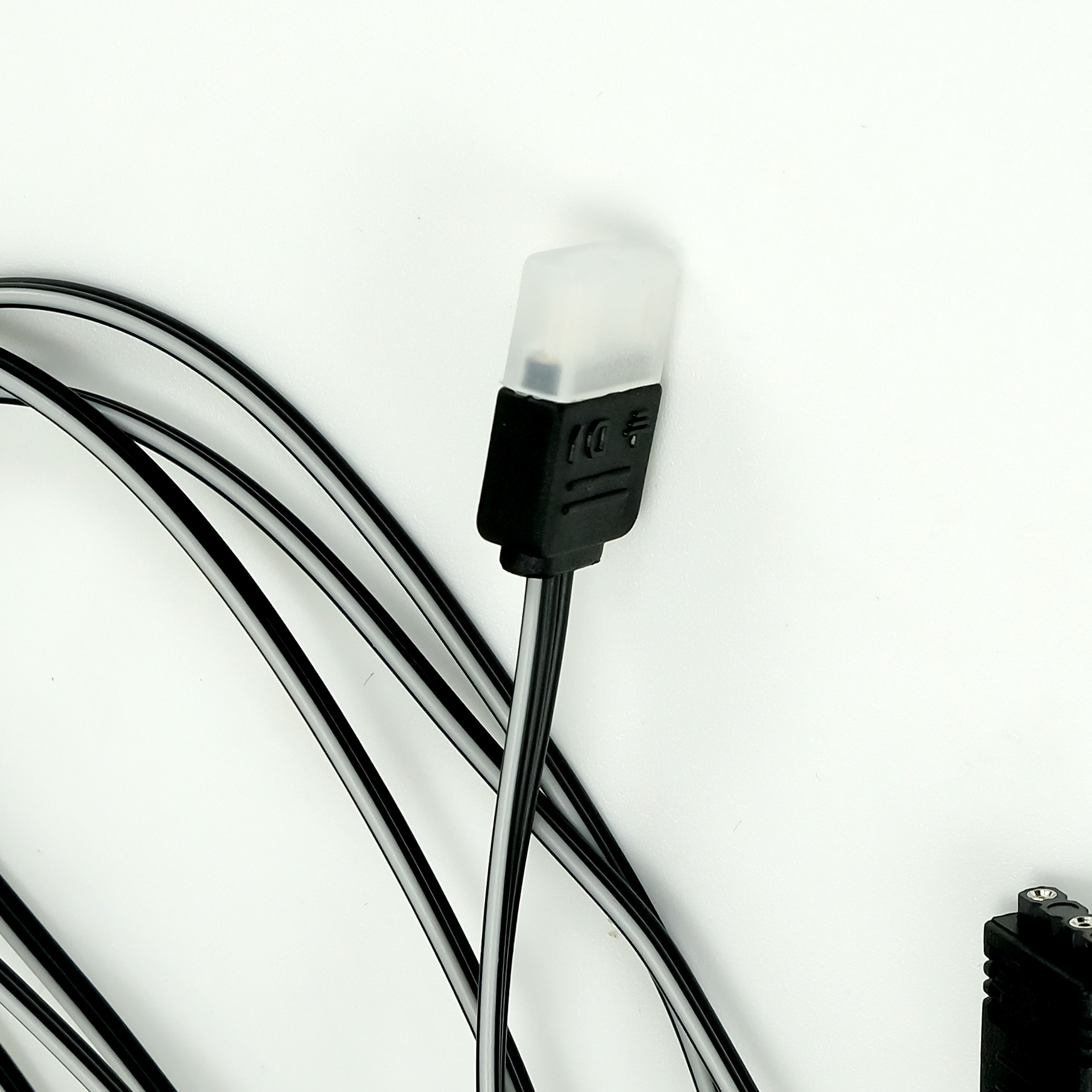

NOTE: If you are not using the Ⓒ (male) connector, please do NOT remove the protection cap in order to prevent the strip from damage.









STEP-04

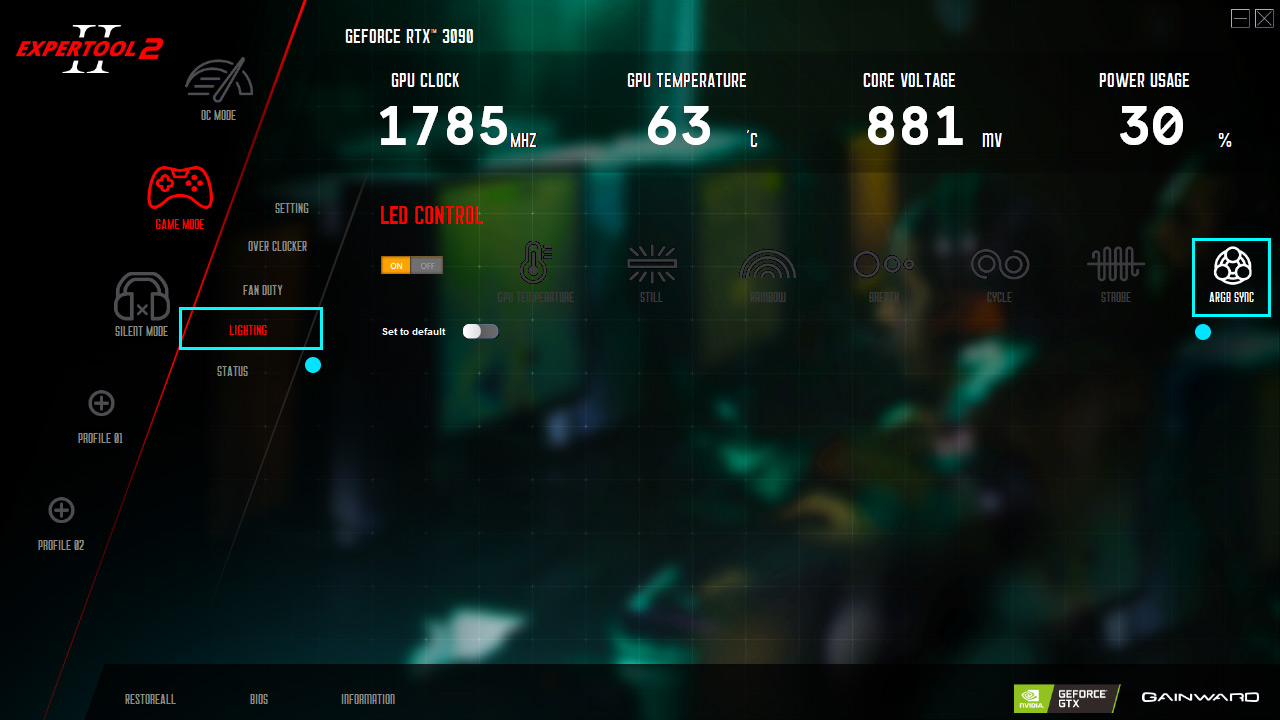

Please download the Expertool and select “ARGB SYNC” under the “Lighting” tab. The software which controls the ARGB of PC devices will then be able to sync the lighting of Gainward graphics card.





Gainward ARGB SYNC - Supported Models

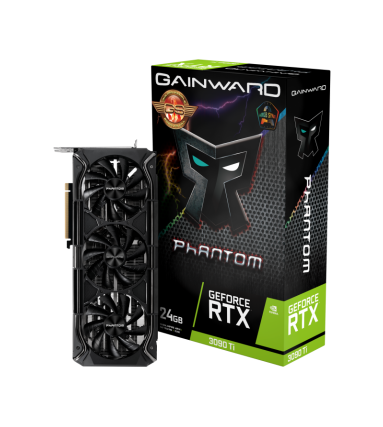

GeForce RTX™ 3090 Ti Phantom "GS"
1890 MHz (Boost)
24 GB GDDR6X (384 bits)
10500Mhz (21Gbps)
1008 GB/s

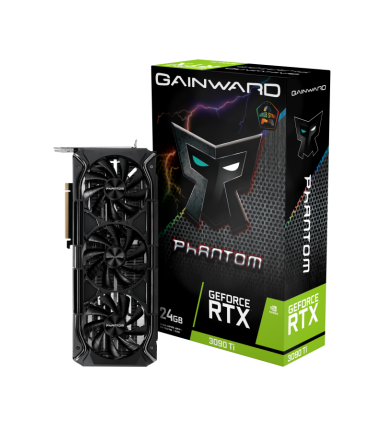

GeForce RTX™ 3090 Ti Phantom
1860 MHz (Boost)
24 GB GDDR6X (384 bits)
10500Mhz (21Gbps)
1008 GB/s
GeForce RTX™ 3090 Phantom+ "GS"
1845 MHz (Boost)
24 GB GDDR6X (384 bits)
9750Mhz (19.5Gbps)
936 GB/s

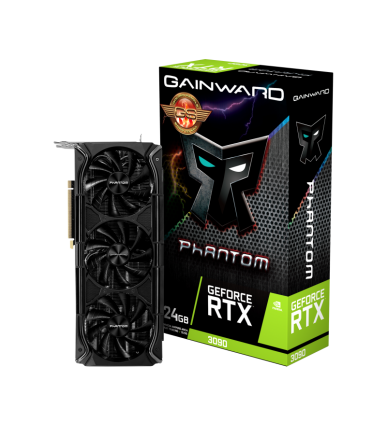

GeForce RTX™ 3090 Phantom "GS"
1845 MHz (Boost)
24 GB GDDR6X (384 bits)
9750Mhz (19.5Gbps)
936 GB/s
GeForce RTX™ 3090 Phantom+
1740 MHz (Boost)
24 GB GDDR6X (384 bits)
9750Mhz (19.5Gbps)
936 GB/s

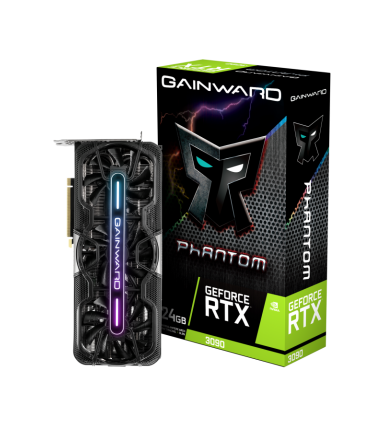

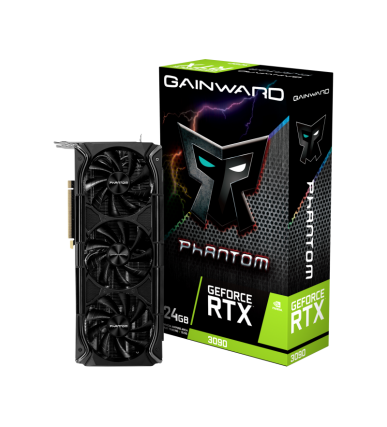

GeForce RTX™ 3090 Phantom
1740 MHz (Boost)
24 GB GDDR6X (384 bits)
9750Mhz (19.5Gbps)
936 GB/s
GeForce RTX™ 3080 Ti Phantom "GS"
1725 MHz (Boost)
12 GB GDDR6X (384 bits)
9500Mhz (19Gbps)
912 GB/s
GeForce RTX™ 3080 Ti Phantom
1665 MHz (Boost)
12 GB GDDR6X (384 bits)
9500Mhz (19Gbps)
912 GB/s
GeForce RTX™ 3080 12GB Phantom "GS"
1815 MHz (Boost)
12 GB GDDR6X (384 bits)
9500Mhz (19Gbps)
912 GB/s
GeForce RTX™ 3080 Phantom+ "GS"
1860 MHz (Boost)
10 GB GDDR6X (320 bits)
9500Mhz (19Gbps)
760 GB/s

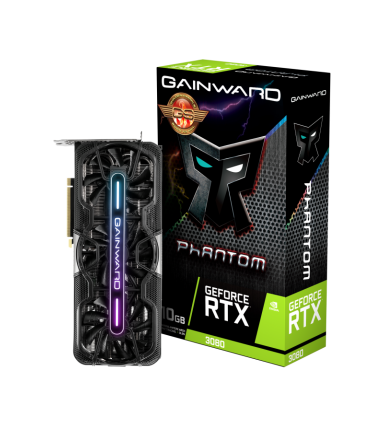

GeForce RTX™ 3080 Phantom "GS"
1860 MHz (Boost)
10 GB GDDR6X (320 bits)
9500Mhz (19Gbps)
760 GB/s
GeForce RTX™ 3080 Phantom "GS" V1
1860 MHz (Boost)
10 GB GDDR6X (320 bits)
9500Mhz (19Gbps)
760 GB/s
GeForce RTX™ 3080 Phantom+
1755 MHz (Boost)
10 GB GDDR6X (320 bits)
9500Mhz (19Gbps)
760 GB/s

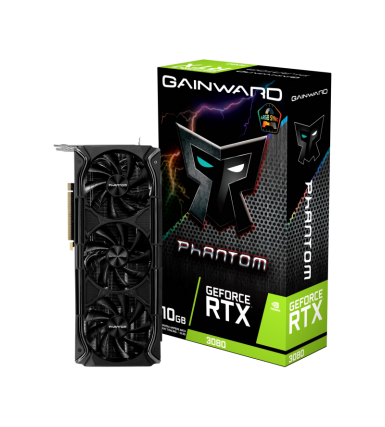

GeForce RTX™ 3080 Phantom
1755 MHz (Boost)
10 GB GDDR6X (320 bits)
9500Mhz (19Gbps)
760 GB/s
GeForce RTX™ 3080 Phantom V1
1755 MHz (Boost)
10 GB GDDR6X (320 bits)
9500Mhz (19Gbps)
760 GB/s

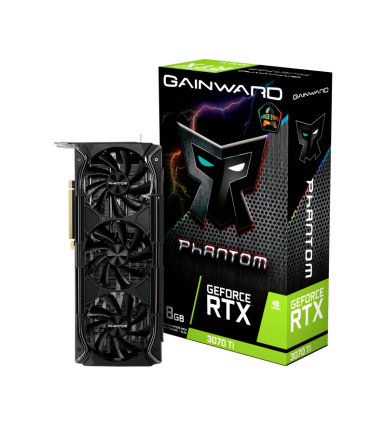

GeForce RTX™ 3070 Ti Phantom
1770 MHz (Boost)
8 GB GDDR6X (256 bits)
9500Mhz (19Gbps)
608 GB/s
GeForce RTX™ 3070 Phantom+ "GS"
1815 MHz (Boost)
8 GB GDDR6 (256 bits)
7000Mhz (14Gbps)
448 GB/s

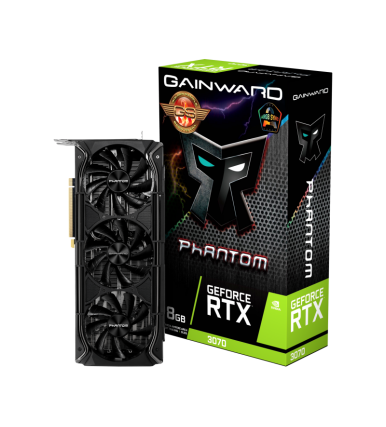

GeForce RTX™ 3070 Phantom "GS"
1815 MHz (Boost)
8 GB GDDR6 (256 bits)
7000Mhz (14Gbps)
448 GB/s
GeForce RTX™ 3070 Phantom "GS" V1
1815 MHz (Boost)
8 GB GDDR6 (256 bits)
7000Mhz (14Gbps)
448 GB/s
GeForce RTX™ 3070 Phantom+
1725 MHz (Boost)
8 GB GDDR6 (256 bits)
7000Mhz (14Gbps)
448 GB/s
GeForce RTX™ 3070 Phantom
1725 MHz (Boost)
8 GB GDDR6 (256 bits)
7000Mhz (14Gbps)
448 GB/s
GeForce RTX™ 3070 Phantom V1
1725 MHz (Boost)
8 GB GDDR6 (256 bits)
7000Mhz (14Gbps)
448 GB/s
