PRODUCTS

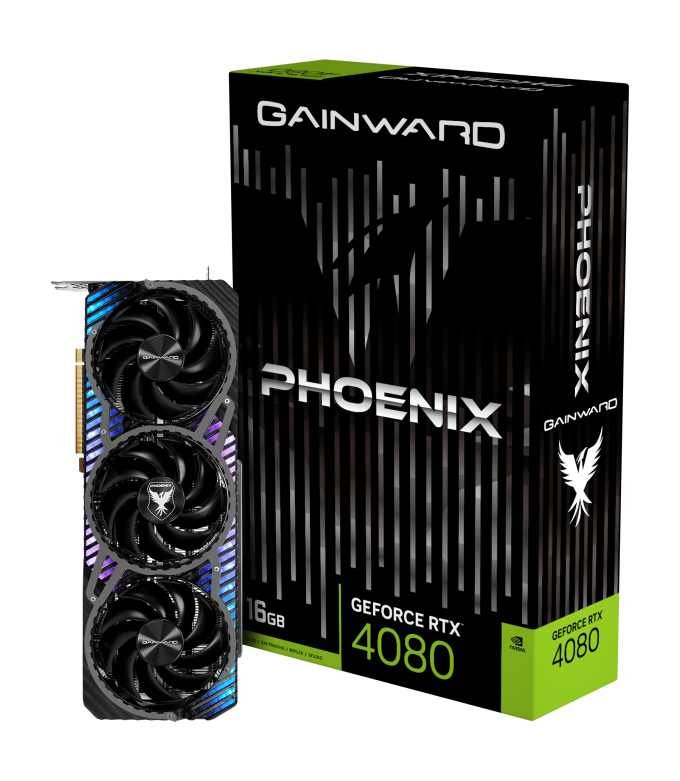

GeForce RTX™ 4080 Phoenix
Gamers Reborn. Fly Your Gaming DNA.

The GeForce RTX 4080 Phoenix Series with DLSS 3 is an excellent alternative to the stealthy black Phantom lineup. The large ARGB lighting capacity on the Phoenix suits the users who prefer a more lively gaming style.

Utilizing the whole new Cyclone Fan and Diffuser Fins, the thermal design on the GeForce RTX 4080 Phoenix ensures steady airflow, efficient heat dissipation and low acoustic level even under heavy-loading gaming environment.

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing.
Product Name GeForce RTX™ 4080 Phoenix
Barcode 471056224-3697
GPU GeForce RTX 4080
GPU Clockspeed 2505 MHz (Boost)
Memory 16 GB GDDR6X (256 bits)
Memory Clockspeed 11200Mhz (22.4Gbps)
Bandwidth 716.8 GB/s
Bus PCI-Express Gen 4 x16
Cooling 3.1 Slot Fan Cooler
Connectivity DP 1.4a x 3 / HDMI 2.1a x 1
Product Size 328.9 x 131.1 x 63.6 mm
Power Connector 16-pin x1
P/N NED4080019T2-1032X
Auto Sync

Offering great compatibility, the Auto Sync technology enables the Gainward graphics card to shine in unity with other ARGB-supported PC parts. Just plug a single cable in, and the ARGB lighting can be synchronized at once without software settings.

Cyclone Fan

The Wing Tip on fantail converges the air current, collecting maximized airflow into the cooling system. The sharp claw marks engraved on the Cyclone Fan Blades further smooth the airflow and lead the air to the heat sink steadily.

Diffuser Fins

The angular fins largely extend the contact surface of the air and the fins, enabling the air current to transmit in the steadiest way.

Classy Metal Backplate

Enjoy the premium airflow performance while keeping aesthetics. The backplate comes with precise cutouts for optimal air venting. The artistic carves and geometric pattern design entitle the backplate as an art piece, reflecting the high-class lifestyle of its user.

Mega Copper Base

The Mega Copper Base produced with anti-oxidation process covers both the GPU and DRAM for effective heat absorbing.

Ultra-Dense Protection Plate

The Ultra-Dense Protection Plate offers extra protection to the graphics card, keeping the board in the sturdy shape.

Two Ball Bearing

2-ball bearing to bring longer life span for the fan

- IP5X dust resistant technology
- Lower fan vibration
- Prolonged fan life expectancy

ARGB Lighting

Addressable RGB allows gamers to customize each LED color.
You can personalize the lighting effects with GAINWARD Expertool Utility

ZERO RPM FAN

The fans Keep stop rotation while you are experiencing the multimedia application or general workload. The fans start rotation while working on heavier loading such as gaming that the GPU temperature surpasses 60°C

NVIDIA DLSS 3

DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on RTX 40, DLSS 3 uses AI to create additional high-quality frames.

NVIDIA Reflex

Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.

Ray Tracing

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA G-SYNC®

Get smooth, tear-free gameplay at high refresh rates, plus HDR and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.
