This ARGB strip supports 5V only. Please follow below steps for installation.If any help needed, please contact our technical support team:
support@gainward.com
STEP-01

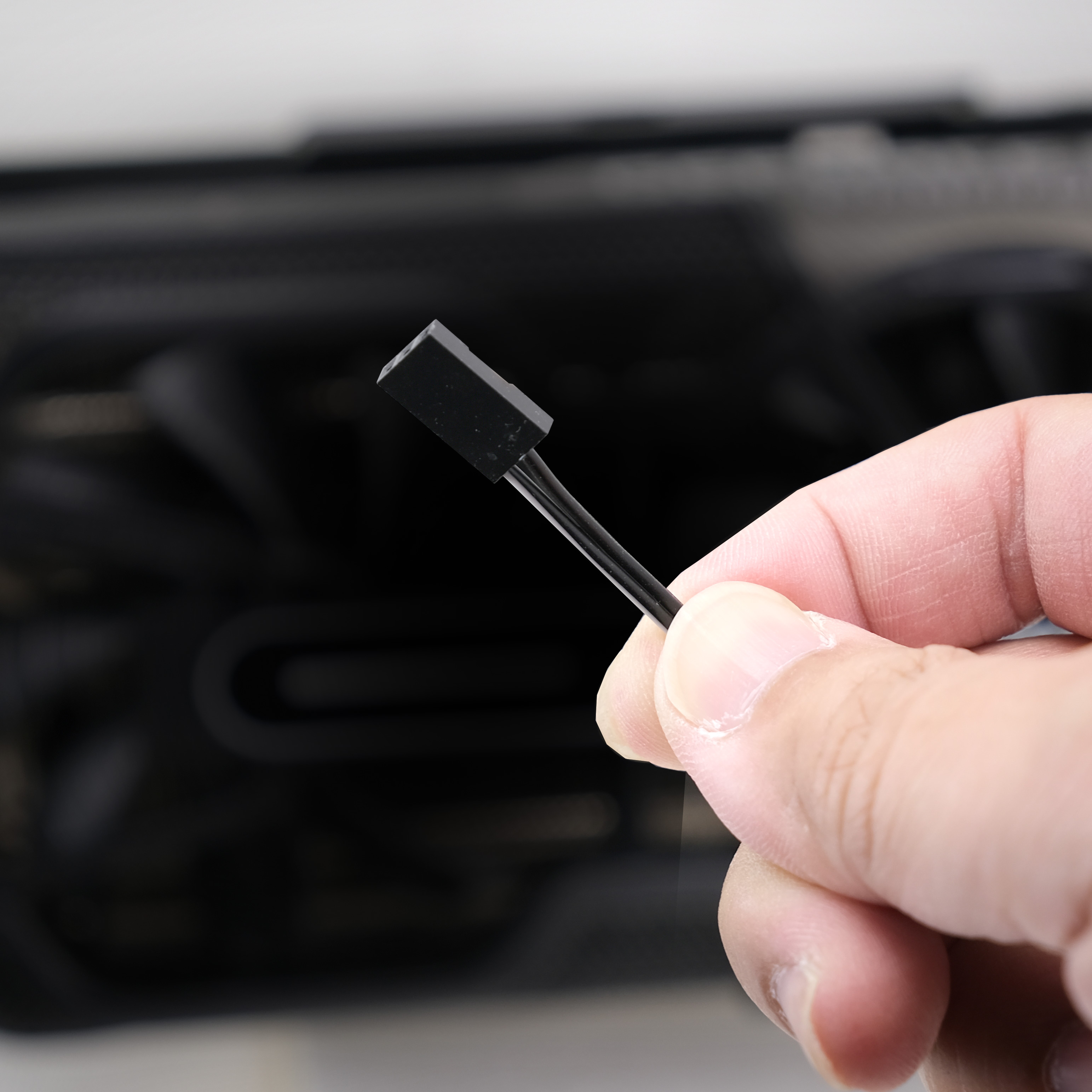

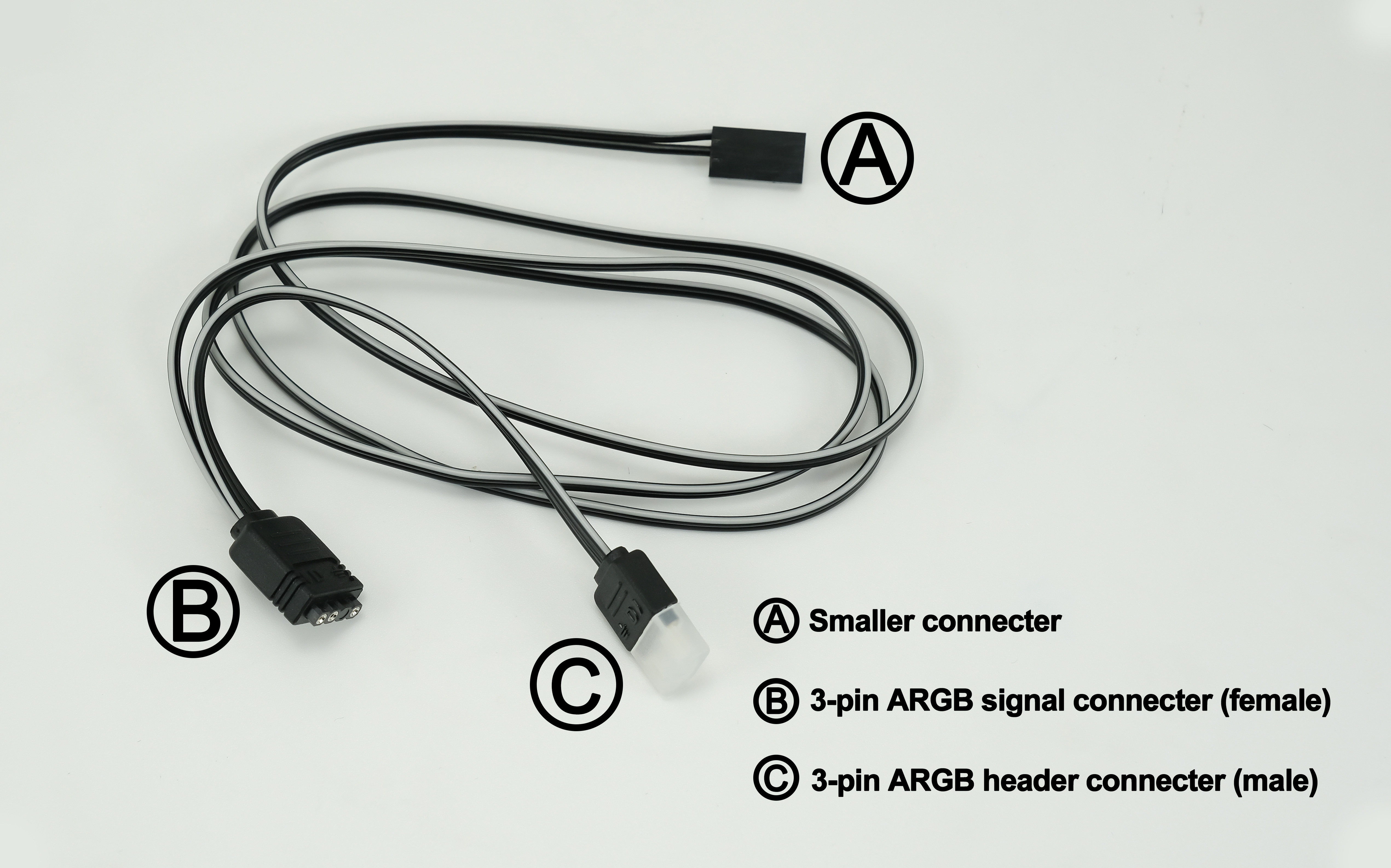

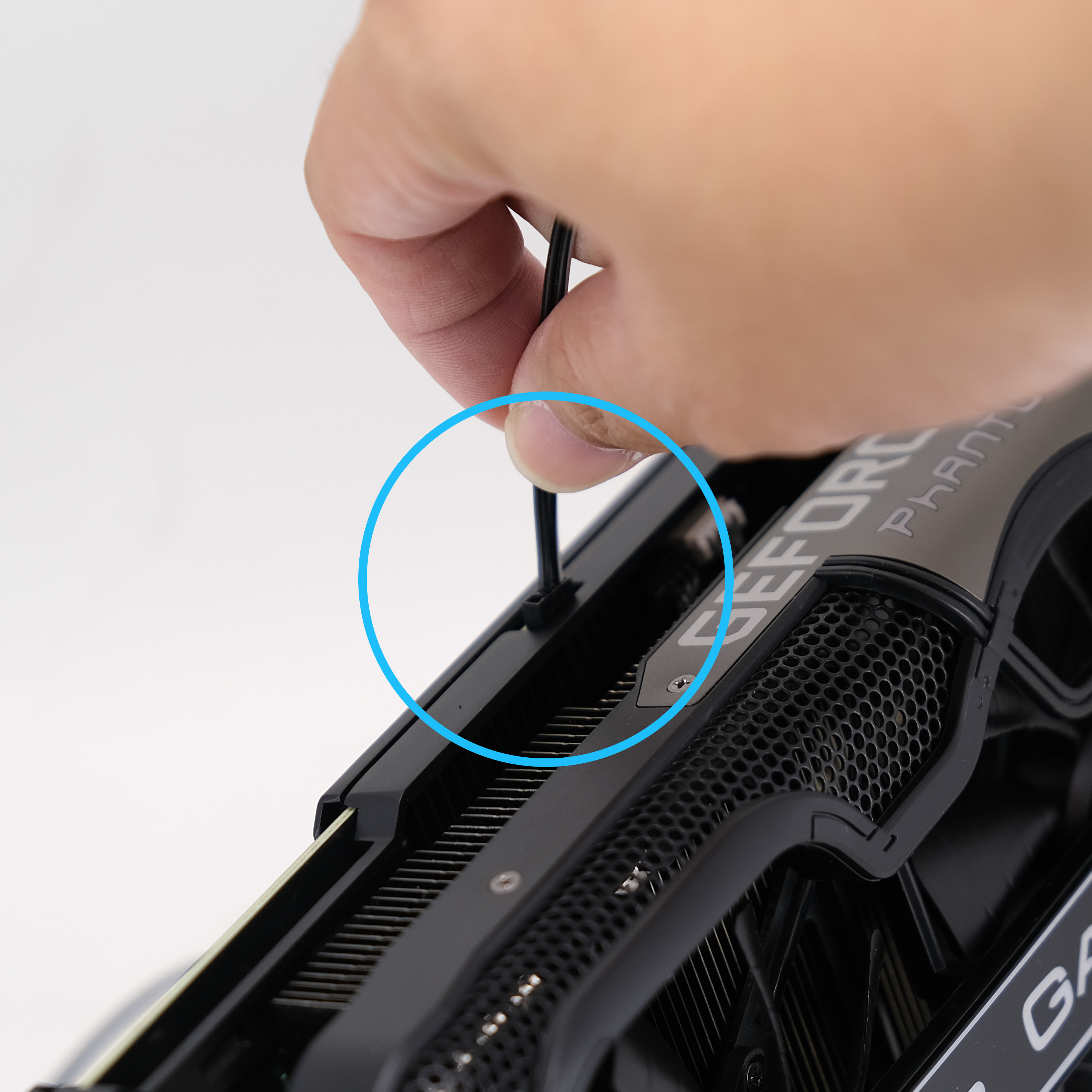

Connect the smaller end Ⓐ to GPU’s connector. The connector is non-directional, so you don’t need to worry about damaging the card with wrong connection.









STEP-02

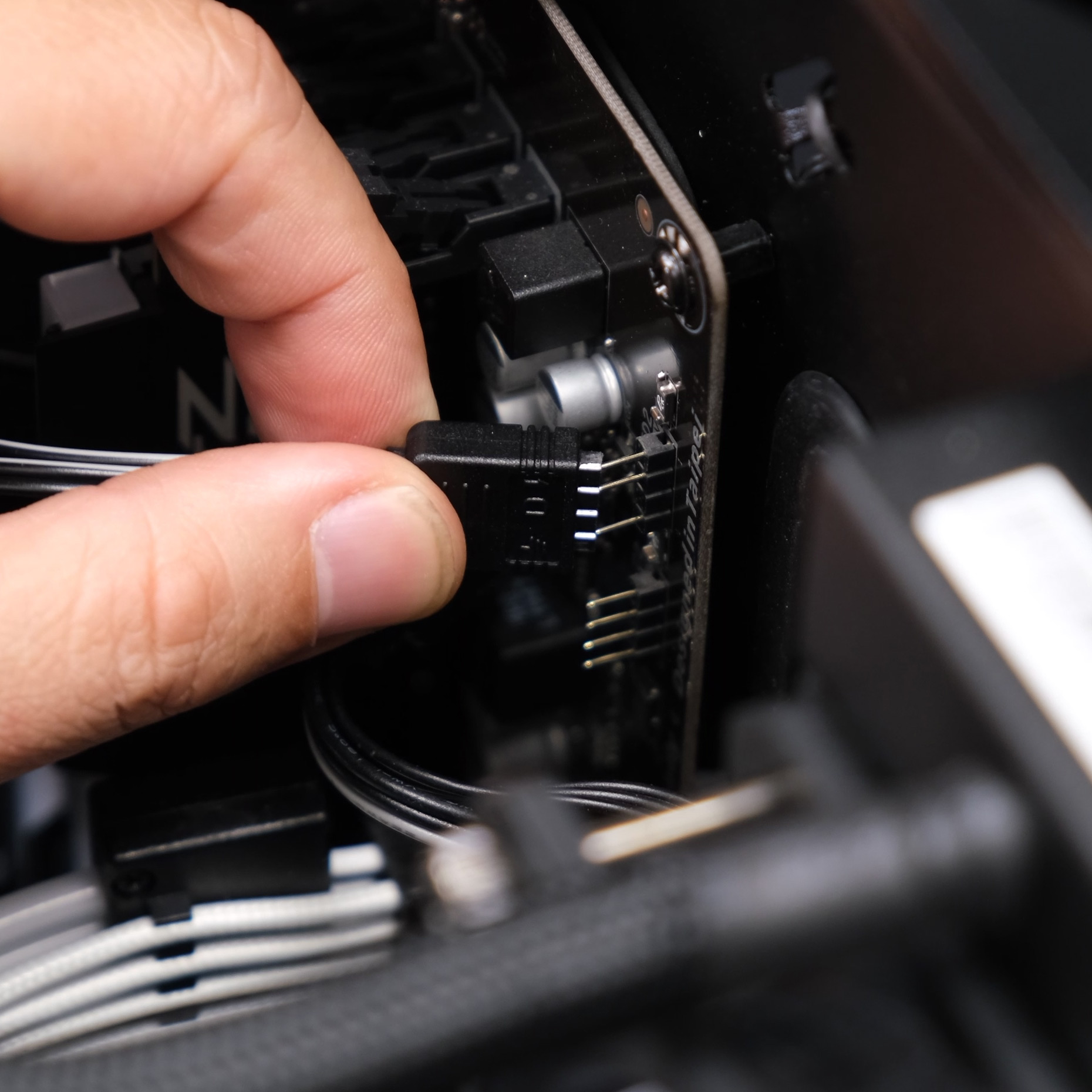

Connect Ⓑ (female) connector to the motherboard or other ARGB controller.
NOTE: The ARGB strip supports 5V only (from the motherboard header or ARGB controller.) Incorrect connection may lead to damage of the strip.





STEP-03

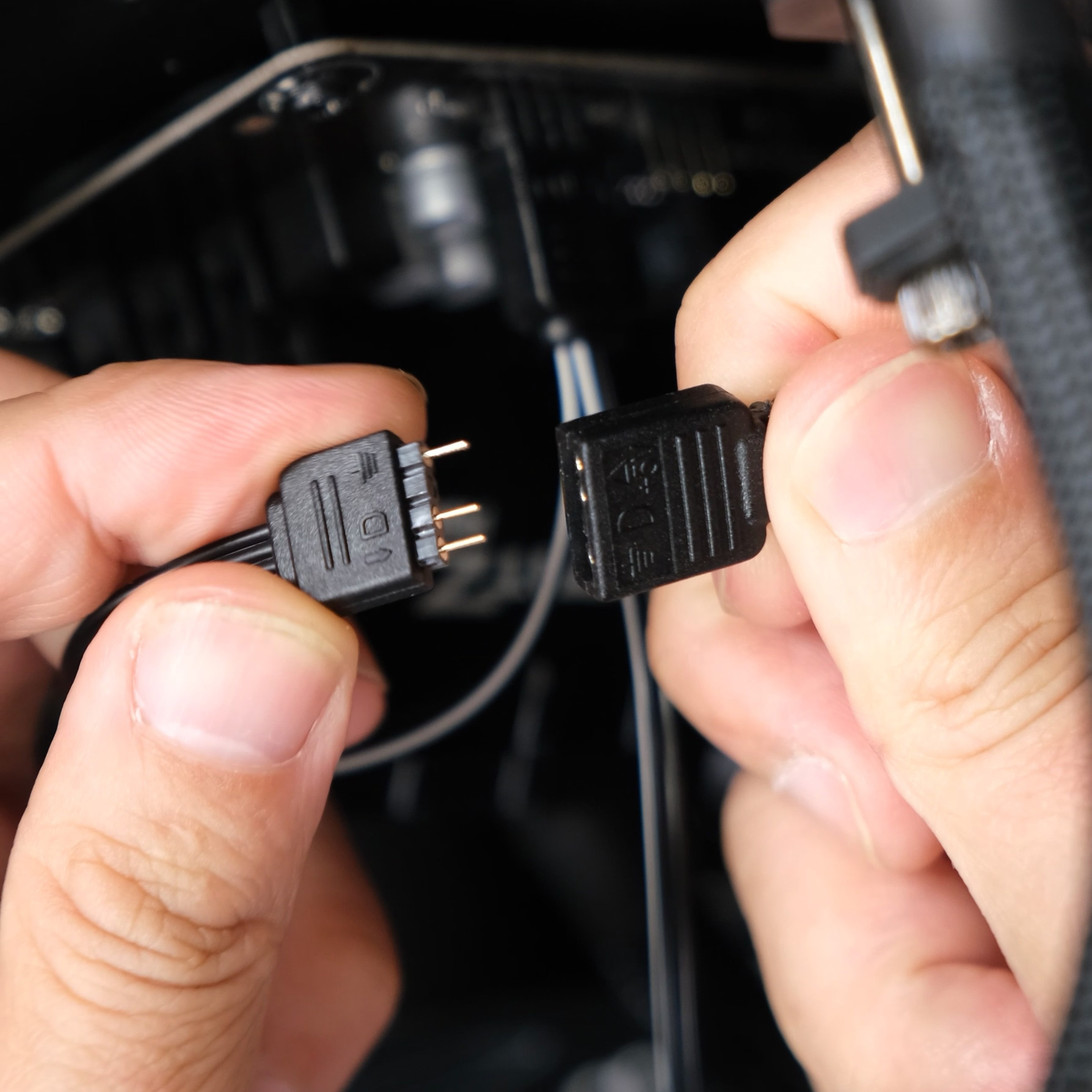

If you have other ARGB-supported devices, you can connect Ⓒ (male) connector to the ARGB strip.

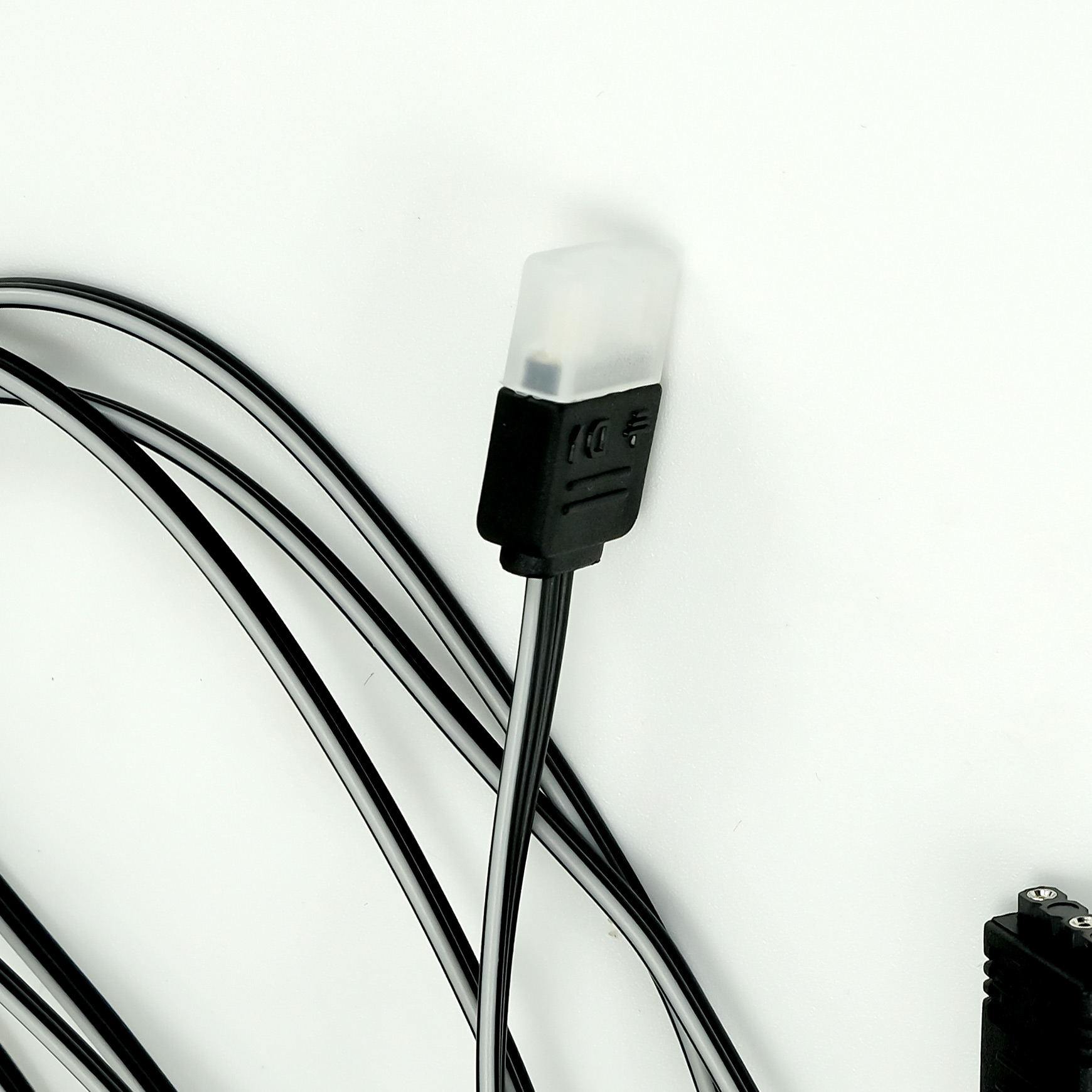

NOTE: If you are not using the Ⓒ (male) connector, please do NOT remove the protection cap in order to prevent the strip from damage.









Gainward AUTO SYNC - Supported Models

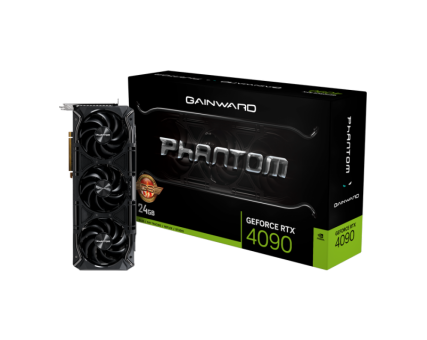

GeForce RTX™ 4090 Phantom GS
2610 MHz (Boost)
24 GB GDDR6X (384 bits)
10500Mhz (21Gbps)
1008 GB/s

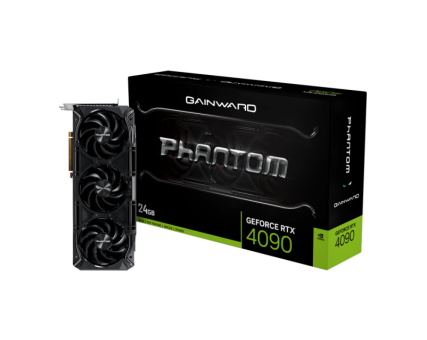

GeForce RTX™ 4090 Phantom
2520 MHz (Boost)
24 GB GDDR6X (384 bits)
10500Mhz (21Gbps)
1008 GB/s
GeForce® RTX 4080 SUPER™ Phoenix GS
2610 MHz (Boost)
16 GB GDDR6X (256 bits)
11500Mhz (23Gbps)
736 GB/s

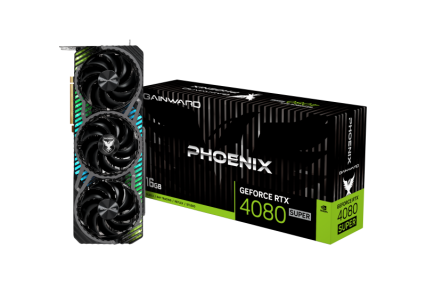

GeForce® RTX 4080 SUPER™ Phoenix
2550 MHz (Boost)
16 GB GDDR6X (256 bits)
11500Mhz (23Gbps)
736 GB/s
GeForce RTX™ 4080 Phantom GS
2640 MHz (Boost)
16 GB GDDR6X (256 bits)
11200Mhz (22.4Gbps)
716.8 GB/s

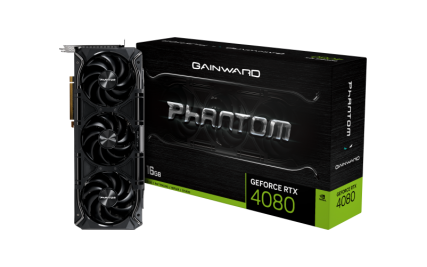

GeForce RTX™ 4080 Phantom
2505 MHz (Boost)
16 GB GDDR6X (256 bits)
11200Mhz (22.4Gbps)
716.8 GB/s
GeForce RTX™ 4080 Phoenix GS
2610 MHz (Boost)
16 GB GDDR6X (256 bits)
11200Mhz (22.4Gbps)
716.8 GB/s

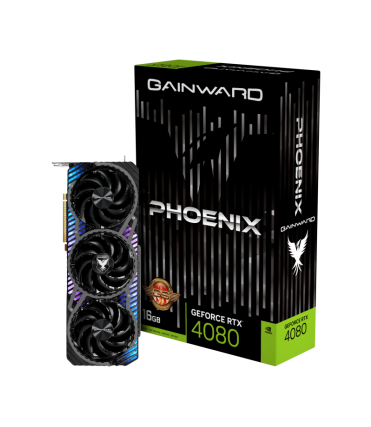

GeForce RTX™ 4080 Phoenix
2505 MHz (Boost)
16 GB GDDR6X (256 bits)
11200Mhz (22.4Gbps)
716.8 GB/s

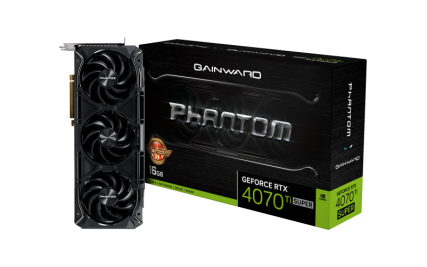

GeForce® RTX 4070 Ti SUPER™ Phantom GS
2685 MHz (Boost)
16 GB GDDR6X (256 bits)
10500Mhz (21Gbps)
672 GB/s

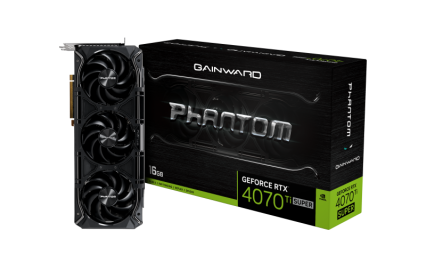

GeForce® RTX 4070 Ti SUPER™ Phantom
2610 MHz (Boost)
16 GB GDDR6X (256 bits)
10500Mhz (21Gbps)
672 GB/s

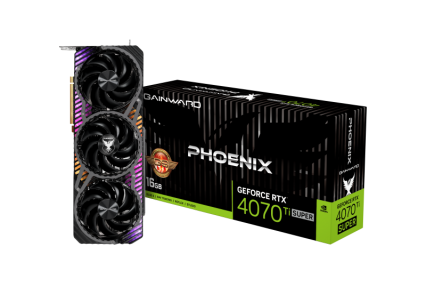

GeForce® RTX 4070 Ti SUPER™ Phoenix GS
2670 MHz (Boost)
16 GB GDDR6X (256 bits)
10500Mhz (21Gbps)
672 GB/s

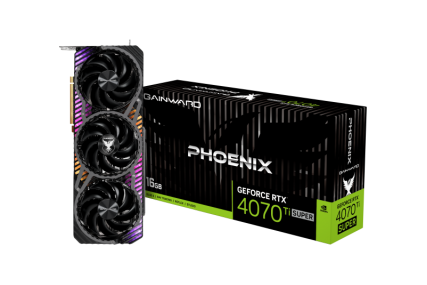

GeForce® RTX 4070 Ti SUPER™ Phoenix
2610 MHz (Boost)
16 GB GDDR6X (256 bits)
10500Mhz (21Gbps)
672 GB/s

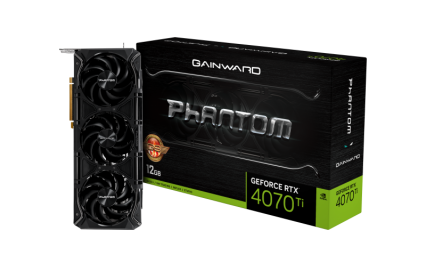

GeForce RTX™ 4070 Ti Phantom GS
2775 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s
GeForce RTX™ 4070 Ti Phantom
2610 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s

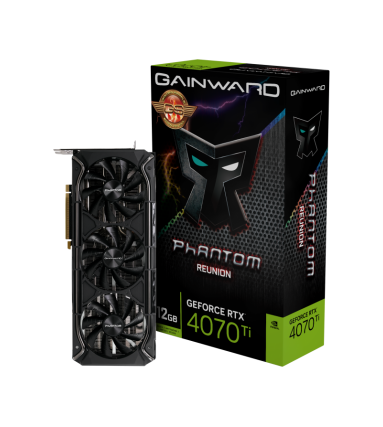

GeForce RTX™ 4070 Ti Phantom Reunion GS
2760 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s
GeForce RTX™ 4070 Ti Phantom Reunion
2610 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s

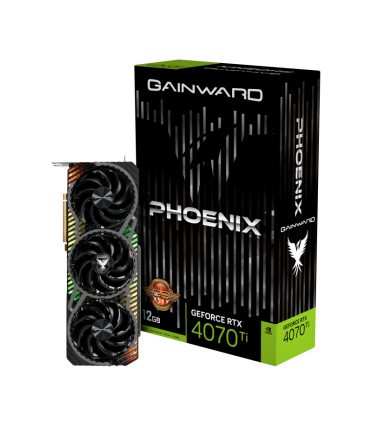

GeForce RTX™ 4070 Ti Phoenix GS
2760 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s
GeForce RTX™ 4070 Ti Phoenix
2610 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s

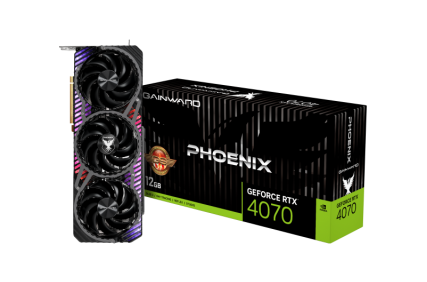

GeForce RTX™ 4070 Phoenix GS
2595 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s

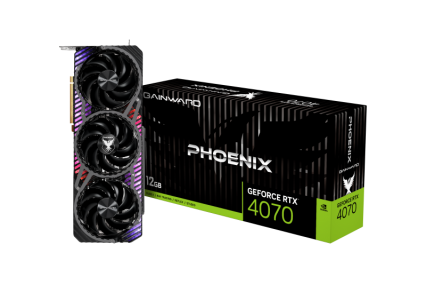

GeForce RTX™ 4070 Phoenix
2475 MHz (Boost)
12 GB GDDR6X (192 bits)
10500Mhz (21Gbps)
504 GB/s
